Description
Precision Welding for Structural Integrity

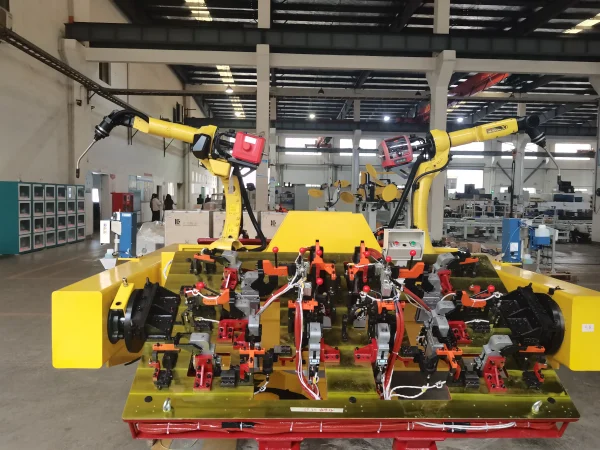

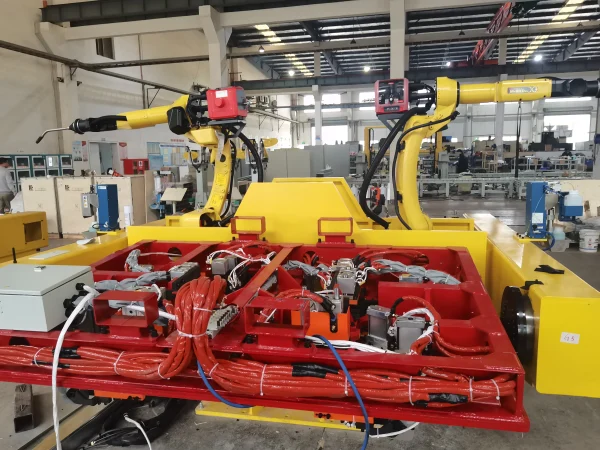

Our subframe welding workstation delivers automotive-grade accuracy for critical chassis components, ensuring robust load-bearing performance. Equipped with 6-axis robotic arms and laser-guided positioning systems, it achieves ±0.05mm repeatability on high-strength steel (HSS) and aluminum alloys. Adaptive pulsed MIG welding technology minimizes heat distortion, maintaining material properties for components up to 12mm thickness. Compliant with IATF 16949 standards, the workstation guarantees weld seam integrity exceeding ISO 13919-1 Level B requirements-ideal for electric vehicle (EV) subframes and off-road vehicle chassis.
Modular Fixturing for Multi-Model Flexibility

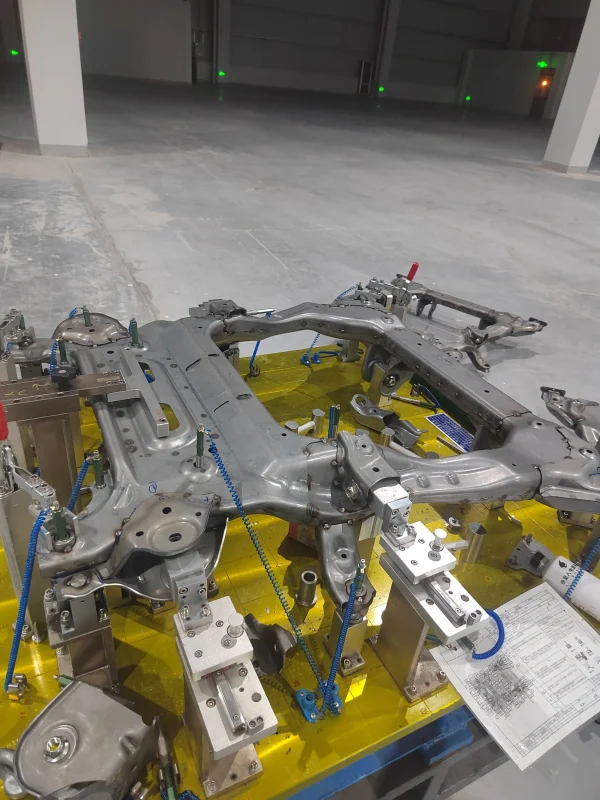

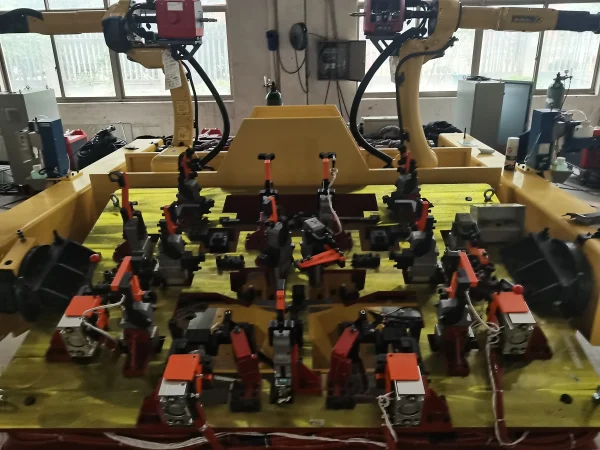

Designed for mixed-model production, the workstation features quick-change modular fixtures that accommodate subframe geometries from compact cars to commercial trucks. Programmable hydraulic clamps secure complex assemblies, including suspension mounts and crossmember joints, within 15-second setup times. Integrated 3D vision systems verify component alignment before welding, reducing rework by 90%. Optional dual-wire welding heads enable simultaneous stitch welding and seam sealing for corrosion-resistant joints per ASTM G85 specifications.
Smart Quality Assurance & Traceability
Real-time weld monitoring tracks 20+ parameters (arc voltage, gas flow, penetration depth) while AI-powered defect detection flags porosity or undercut flaws at 0.1mm resolution. Post-weld processes include automated grinding and coordinate measuring machine (CMM) validation against CAD models. All data syncs to a blockchain-based traceability platform, generating AS9100-compliant reports for aerospace-grade accountability-critical for OEMs and Tier 1 suppliers.
Ergonomic & Energy-Efficient Design
The Subframe welding workstation’s compact footprint integrates overhead fume extraction and low-energy servo drives, cutting power consumption by 25% versus conventional systems. Human-machine interface (HMI) panels with augmented reality (AR) guides streamline operator workflows, reducing training time by 50%. Optional collaborative robot (cobot) assist modules enhance safety in high-volume environments, aligning with OSHA 1910.147 lockout/tagout protocols.
End-to-End Integration & Support
From prototype validation to full-scale production, we provide turnkey solutions including weld simulation, fixture design, and lean layout optimization. Remote diagnostics via IIoT predict maintenance needs with 98% accuracy, minimizing downtime. CE/UL-certified and compatible with Industry 4.0 frameworks, the workstation seamlessly integrates with ERP/MES systems. Backed by 10-year structural warranties and ≤0.15% defect rate guarantees, our solution ensures 30% faster ROI for automotive and industrial subframe manufacturers.
