High-Strength Welding for Heavy-Duty Booms

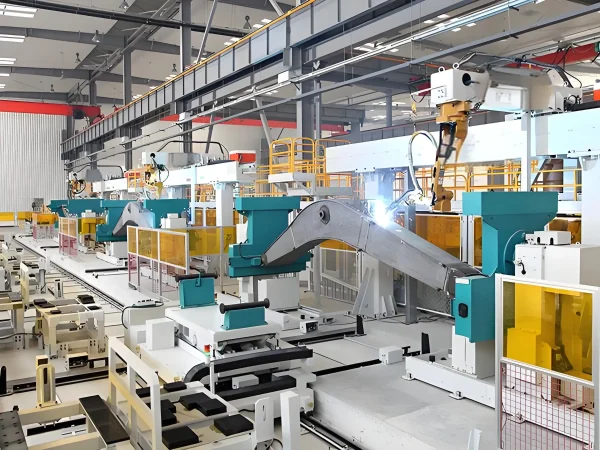

Our swing arm welding production line is engineered for precision fabrication of construction machinery booms, cranes, and excavator arms. Utilizing robotic MIG/MAG welding systems with adaptive arc sensing, it handles steel plates from 10mm to 50mm thickness while maintaining weld integrity under extreme loads. Multi-axis positioners enable 360° access for complex 3D joints, ensuring full penetration on critical stress points. Compliant with ISO 5817 and AWS D1.1 standards, the line achieves tensile strengths exceeding 700 MPa, ideal for mining, forestry, and heavy-lift equipment manufacturing.
AI-Driven Process Optimization
Integrated AI algorithms analyze joint geometries and material properties to auto-adjust welding parameters (voltage, wire speed, gas flow) in real time. Laser seam tracking with ±0.1mm accuracy compensates for thermal distortion during multi-pass welding. The system supports offline programming for rapid job switching between telescopic booms, box-section arms, and custom profiles, reducing setup downtime by 60%. IoT-enabled predictive maintenance minimizes unplanned stoppages, achieving 95% operational uptime.
Advanced Defect Prevention System
Equipped with phased-array ultrasonic testing (PAUT) and X-ray inspection stations, the swing arm welding production line detects internal flaws like porosity or incomplete fusion at micron-level precision. Pre-weld laser cleaning removes oxidation, while post-weld stress-relief heat treatment ensures dimensional stability. Automated grinding units deliver Ra 3.2 surface finishes, meeting OEM specifications for corrosion-resistant coatings. All data syncs to a centralized QC dashboard, providing ASME Section IX-compliant documentation for traceability.
Energy-Smart Production Design
Regenerative power systems recover 80% of welding energy, cutting electricity consumption by 35% versus traditional lines. Compact modular layout with overhead magnetic conveyors accommodates booms up to 18m in length. Optional fume extraction systems with HEPA filtration reduce workplace particulate levels below OSHA 0.1mg/m³ thresholds. Solar-ready power interfaces and low-emission burners align with Tier 4 Final environmental standards for sustainable heavy equipment production.
Turnkey Integration & Lifetime Support
From CAD/CAM file conversion to FAT testing, we deliver complete welding solutions tailored for crawler crane booms, aerial work platforms, and demolition rigs. On-site training includes WPS (Welding Procedure Specification) optimization and AWS-certified operator certification. Global 24/7 remote diagnostics via IIoT gateways ensure rapid troubleshooting. Backed by 10-year structural warranties and ≤0.2% defect rates, our production line guarantees ROI through 30% faster cycle times and 50% reduced rework costs.
